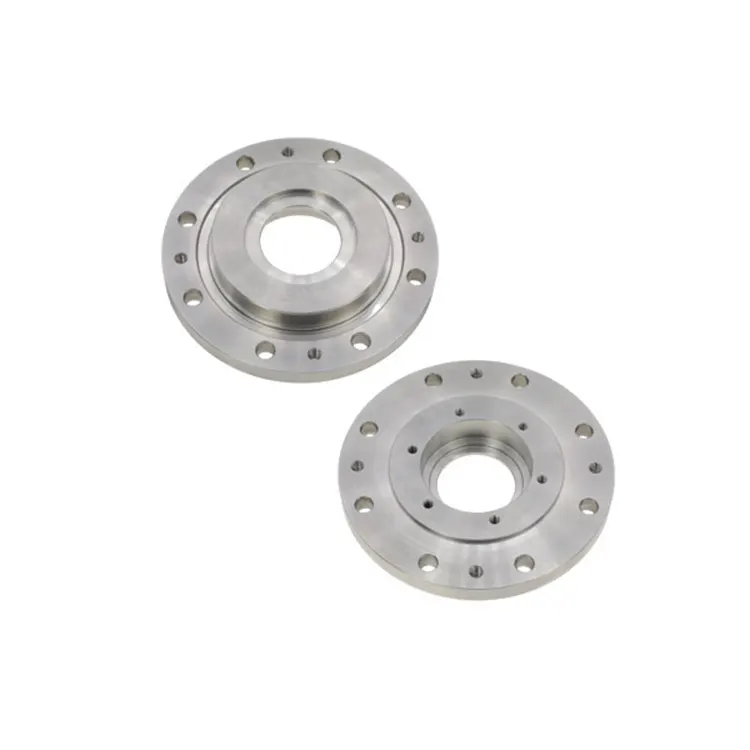

Qingdao Difon Machinery Co., Ltd. – Mounting Flanges for Industrial Robots

Qingdao Difon Machinery Co., Ltd. (Difon) makes mounting flanges for industrial robots. We do precision machining for clients who need strong, parts with high load-bearing capacity to maintain operational stability. Our process combines deep application expertise, micron-level precision control, and adaptable custom design capabilities. That’s why robot makers and automation companies trust us.

Our exclusive focus on mounting flanges translates into deep application knowledge, ensuring this critical linkage component performs flawlessly in your system. They’re the key “link” for industrial robots—connecting robot arms to bases, end tools, or worktables. Even a tiny size mistake can cause vibration, unbalanced loads, or significantly reduce the flange's service life. To meet the stringent demands of robotic applications, every flange is manufactured with two core objectives: consistent micron-level accuracy, and compatibility across a wide range of robot models. Unlike generic machining shops, we calibrate every process based on the robot’s load, speed, and work environment. So each Difon flange doesn’t just match your drawing—it also makes the whole robot system more reliable. This approach is valued by clients in automotive assembly, electronics manufacturing, and logistics automation, which is why we’re their top choice for mounting flanges.

Our precision machining starts with picking the right material for how the robot is used. For light collaborative robots that need to be light and rust-resistant, we use aerospace-grade aluminum alloy 6061-T6. For heavy-duty robots in tough places, we use stainless steel 316L with molybdenum. It resists high-heat oxidation and chemical rust—passing 1000 hours of salt spray testing . Before machining, all raw materials get spectral analysis to check their chemical makeup. This prevents impurities from causing stress cracks under the robot's cyclic loading. This rigorous material selection process is a key reason why Difon flanges outperform those made from standard-grade metals. Our machining process for flanges focuses on super-fine accuracy—as robotic systems are highly intolerant of even minor dimensional deviations. Your flanges benefit from our advanced five-axis CNC machining centers, capable of spindle speeds up to 15,000 rpm. They can repeat positions within ±0.003mm. This lets us make flange bolt holes with alignment tolerance ≤0.005mm, and sealing surfaces with flatness ≤0.002mm per 100mm. To avoid heat warping, our workshop stays at 22±1℃. We also use coolant that’s 20±0.5℃ to keep the part temperature steady while cutting. After machining, every flange gets 100% checked with a Zeiss CONTURA G2 machine. We scan 50+ key points to match the 3D design. For fast-moving robots, we also do dynamic balance testingThis mitigates vibration induced by centrifugal forces—a critical service offered by Difon that is often overlooked by standard manufacturers.

We also do custom mounting flanges to fit different client needs. Your custom flange project progresses through four clear stages: It begins with a collaborative consultation to understand your requirements, how much weight it carries, installation space, and work conditions. Second, we design a 3D model—add ribs for heavy loads or holes to make it lighter for fast moves. Third, we make 1-2 prototypes for you to test how they fit and work. Fourth, we adjust machining settings based on your feedback before making more. Last year, a big automotive robot maker came to us. They needed a custom flange for their 200kg welding robot—the standard flanges on the market were too thick for their small work area. We redesigned it with a hollow center and changed the bolt hole layout to fit their setup. This flange passed 50,000 simulated welding runs with no bending or loosening. Now they order 500 at a time. This case demonstrates our ability to solve unique engineering challenges, solidifying our reputation as a customer-centric partner.

To guarantee performance and reliability in your application, every flange is manufactured and tested in compliance with global industrial standards. We have ISO 9001:2015 quality certification. Every batch comes with a test report that includes:

Size accuracy, Material strength, Surface smoothness and Environmental resistance.

We care about precision even after you get the flanges. We give detailed install guides—like how tight to make the bolts. We also offer a 12-month warranty. If a flange breaks because of machining issues, we replace it for free and fix the root cause so it doesn’t happen again. For urgent needs (like robot repairs), we can make prototypes in 3-5 days and mass produce in 15-20 days. Whether you need standard flanges for FANUC, KUKA, or ABB robots, or fully custom ones for special automation gear, our precision machining gives you consistent quality and tailored solutions. As your reliable partner in automation, Difon is dedicated to advancing robotic performance with high-precision, durable mounting flanges.
