Large-Format Sheet Metal Laser Cutting: Customized Solutions at Difon Machinery

Manufacturers in heavy machinery, architectural metalwork, and container production often need large-format sheet metal cutting. Think 6000mm-long carbon steel container side panels, 2500mm-wide aluminum architectural cladding, or 60mm-thick alloy steel heavy equipment bases—Difon Machinery Co., Ltd. is a reliable choice for custom laser cutting that handles these oversized parts. Our main service is sheet metal laser cutting, and we specialize in materials up to 6000mm (length) × 2500mm (width) × 60mm (thickness). This lets us solve big cutting problems: keeping precision over long lengths, stopping thick materials from warping when heated, and making sure edges stay consistent. If you use our custom Difon laser cutting for large parts, you don’t have to split big designs into smaller pieces (which adds assembly time and weakens strength) or use thinner materials (which limits how much weight they can hold). Instead, you work with a team that turns full-size designs into single, ready-to-use parts. Need 5 prototype heavy machinery bases or 500 mass-produced architectural panels? We can handle both, and we’ll fit it to your production timeline with smart cutting workflows.

Large-format sheet metal laser cutting has unique challenges—ones generic services often mess up. For example, a 6000mm-long carbon steel container panel needs straight, even cuts the whole way. Even a 0.5mm off can make assembly hard, leading to leaky seams. A 2500mm-wide aluminum architectural panel needs smooth, burr-free edges—rough edges mean on-site grinding, which delays projects. A 60mm-thick alloy steel machinery base needs precise cutouts for parts—holes that are off-center can ruin the whole base, wasting expensive metal. Many shops avoid these issues by limiting how big they cut or using plasma cutting (which isn’t precise enough for thick materials). But at Difon, our custom Difon laser cutting is built for large-format work. First, we learn how you’ll use the part: Is it holding heavy loads (like machinery bases)? Will it be outside (like architectural cladding)? Does it need tight assembly fits (like container panels)? Then we tweak our cutting settings, equipment setup, and quality checks to match those needs. This way, even your biggest parts are just as precise as smaller ones.

The reason we can handle 6000mm×2500mm×60mm sheet metal is our special laser cutting equipment and workshop setup. We have two 8000W fiber laser cutting machines, each with a long, split worktable (7000mm×3000mm) that holds heavy, thick materials (up to 500kg per sheet) without sagging. Standard tables make you move large sheets by hand—risking misalignment—but ours have automated roller conveyors and precise linear guides (accurate to ±0.03mm every time) that move the sheet smoothly while cutting. This keeps positioning consistent even for 6000mm-long parts. For thick materials (up to 60mm), the machines use high-power laser modules with adjustable focal lengths (150mm–300mm) and two types of helper gas: oxygen for carbon steel (to speed up cutting and get through thick layers) and nitrogen for aluminum/stainless steel (to stop rust and keep edges clean). Take a 60mm-thick alloy steel machinery base—our 8000W laser melts through it at 0.2 meters per minute, and oxygen blows away molten metal to leave a straight cut with no messy bits. For a 2500mm-wide aluminum panel, nitrogen keeps edges bright and unmarked—so you don’t need to polish them later.

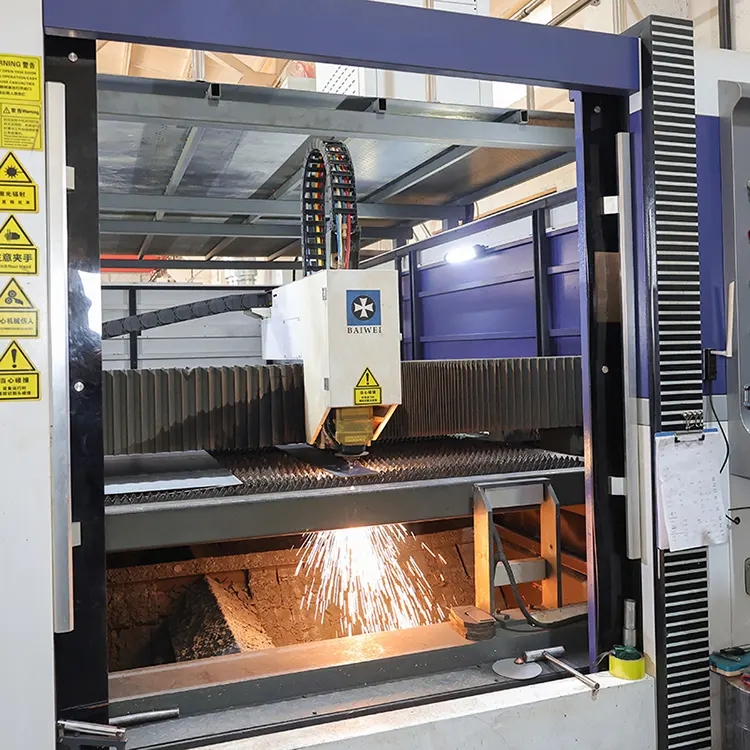

Difon’s 8000W fiber laser cutting machine in operation, handling a 6000mm×2000mm×12mm carbon steel sheet for container side panels—showing the automated worktable and laser head’s precise movement along the sheet’s length

To make sure large-format parts meet your specs, we’ve built a cutting workflow optimized for big sizes. It fixes issues like heat warping, material sagging, and alignment problems that only happen with oversized sheet metal. First, our engineers look at your design files to tweak the cutting path. For 6000mm-long parts, we cut in 1000mm sections (moving from one end to the other) instead of the whole length at once. This stops heat from building up in one spot—super helpful for thin 2mm aluminum cladding (since it bends so easily) and thick 60mm steel (which holds heat longer). Second, we monitor temperature in real time while cutting: infrared sensors track the material’s surface heat, and the machine slows down if it gets too hot to prevent warping. Third, for parts with complex cutouts—like 60mm-thick bases with lots of mounting holes—we cut small features first (to reduce stress on the sheet) before doing big straight cuts. This keeps even 6000mm×2500mm sheets flat and accurate through the whole process.

Difon’s Large-Format Laser Cutting Parameters by Material & Size

Quality checks for our custom Difon laser cutting are tailored to large-format parts—standard tools often aren’t enough for 6000mm or 2500mm components. We use two key tools for precision: a laser tracker (accurate to ±0.05mm over 10 meters) to measure whole parts—like checking a 6000mm steel panel is straight within ±0.3mm—and a coordinate measuring machine (CMM) with a long probe arm to inspect small features, like mounting holes in a 60mm-thick base (making sure they’re ±0.1mm aligned with your design). We also do “fit tests” for parts that need assembly. If you order 2500mm-wide aluminum cladding, we put three sample panels together to check gaps (no more than 0.2mm between them) and edge alignment. For thick materials, we look at the cut’s angle—making sure a 60mm steel base has a 90° edge (±0.5° off is okay) so parts mount stable. Every large part gets a protective coating before shipping: anti-rust oil for steel, film for aluminum. We also use custom wooden crates with internal supports to stop bending or scratching—we know how easy it is for big metal parts to get damaged in transit.

Time-lapse footage of Difon’s large-format laser cutting process—from loading a 6000mm×2000mm carbon steel sheet onto the automated worktable, to laser cutting (showing segmented path and temperature monitoring), to laser tracker inspection and packaging in a custom crate

What makes our custom Difon laser cutting stand out for large work? We support you through the whole project—not just cutting. Many clients struggle to design big parts for laser cutting. A 6000mm panel with no support features might warp; a 2500mm aluminum sheet with complex cuts might be hard to handle. Our engineers help for free with design tweaks: we look at your large CAD files, suggest adding small support ribs (to stop warping) or moving cutouts (to make handling easier), and even show 3D renderings of the final part so you can see how it assembles. We also help source materials. If you need 60mm-thick alloy steel or 2500mm-wide aluminum (hard to find locally), we can get it from trusted suppliers—saves you time and keeps material quality consistent. For big orders (like 500+ 6000mm container panels), we give a schedule with weekly deliveries so you can match our timeline to your assembly line. We also assign a dedicated project manager to large orders—they send daily updates on progress and fix issues fast, like material delays or design changes.

At Difon Machinery Co., Ltd., we don’t think large-format sheet metal laser cutting means giving up precision or reliability. Our custom Difon laser cutting is built for your biggest, thickest, most complex parts—from 6000mm container panels to 60mm machinery bases—and we make them just as good as smaller components. We use special equipment, smart workflows, strict quality checks, and tailored support to turn your big design ideas into real, ready-to-use parts. Building heavy machinery? Designing architectural metalwork? Making containers? We’re here to help with your large-scale laser cutting needs. Contact our team today to talk about your large-format sheet metal needs, ask for a sample cut of your design, or schedule a visit to our facility—you can see our 8000W laser machines and large-format workflow in action.
