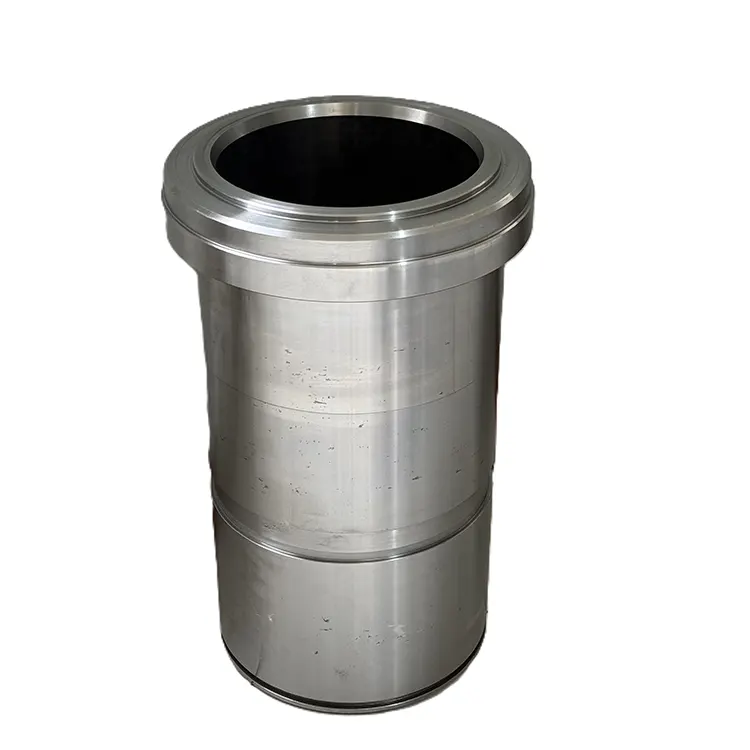

End-to-End Precision Machining for Excavator Cylinder Sleeves – Difon’s Integrated Manufacturing Strength

Difon Machinery Co., Ltd. runs a specialized factory for excavator cylinder sleeves. They manage the entire production process. It starts with casting the basic blanks and ends with detailed high-precision machining for those essential parts. They directly impact the performance, durability, and efficiency of hydraulic systems in construction excavators. Our Difon excavator cylinder sleeves are built to handle extreme working conditions: heavy loads, abrasive dust, and constant friction between the piston and sleeve inner wall. They maintain tight dimensional accuracy and top-notch wear resistance. Keeping casting, heat treatment, and precision machining in one facility eliminates the complexities and delays of coordinating multiple suppliers. It keeps each production stage working well together and cuts lead times by 35% compared to providers who split their services. Work with Difon as your excavator cylinder sleeve partner, and you’ll get a team that understands precision and reliability of construction machinery. We make components that meet industry demands cut down downtime lengthen excavator service life and lower maintenance costs. A construction firm we worked with said these parts helped them slash maintenance expenses by nearly 25% last year. Whether you need 10 prototypes for new machine development or over 1000 batch units for aftermarket replacement we’ve got you covered. Difon excavator cylinder sleeves are the “heart” of hydraulic cylinders. They serve as the sliding surface for pistons to turn hydraulic energy into mechanical force essential for digging lifting and loading. One excavator manufacturer told us our sleeves made their machines’ digging performance more stable with far less wear over time—something their old suppliers never managed to deliver.

A poorly made sleeve with uneven inner wall roughness can boost friction, leading to excessive oil use and early piston seal failure. A sleeve with inconsistent wall thickness might deform under high hydraulic pressure, causing oil leaks and catastrophic hydraulic system breakdowns. This could cost construction companies thousands in downtime and repairs. Many factories only focus on casting or machining alone. This often results in cast blanks that need too much material removed or finished sleeves that can’t meet assembly tolerances. Our integrated approach proactively addresses these issues through the design of casting molds with precise machining allowances, use wear-resistant alloys tailored to excavator working conditions, and apply advanced machining to meet strict performance standards. Take a 6-cylinder sleeve for a 20-ton construction machine – we use centrifugal casting to get even metal density. We then use precision honing machine to get an inner wall roughness of Ra 0.2μm or better. This keeps piston movement smooth and seal life longer even in dusty, high-load work sites. The key to our high-performance Difon excavator cylinder sleeves is choosing the right materials and precision casting – these two steps set the component’s natural strength and wear resistance. We only use top-quality alloys tailored for hydraulic cylinders, striking a balance between hardness, toughness and ease of machining. The table below lists our main materials and their custom properties:

After casting, each sleeve blank goes through careful pre-machining prep so later high-precision processing turns out well. We first do shot blasting to remove surface oxides and sand residues then rough turning to trim extra material and set basic dimensional benchmarks. For high-chromium alloy sleeves we do intermediate heat treatment – stress relief annealing at 650℃ for 4 hours – to get rid of residual stresses from casting and rough machining. This annealing process has been proven to reduce deformation during final machining by over 90% in production, ensuring dimensional stability. This step is key to preventing warping during final precision machining. We also check each blank using ultrasonic testing to find internal flaws such as porosity or shrinkage cracks that could weaken the sleeve under hydraulic pressure. Any bad blanks are rejected immediately so we don’t waste more resources on further processing. This rigorous pre-screening prevents potential field failures, ensuring the reliability of your excavators and protecting your operational uptime.

Our precision machining for Difon excavator cylinder sleeves involves several steps. It pulls together advanced tools and our own special methods to deliver high accuracy and surface finish. We use a fleet of high-precision CNC lathes, vertical machining centers, and honing machines to process key features: inner wall honing is the most critical step for performance—we use diamond honing tools with a 4-stone setup to achieve an inner diameter tolerance.

This pattern cuts down friction between the piston and sleeve, making both parts last longer than regularly honed sleeves. A hydraulic cylinder manufacturer we partner with said this design saved them a fortune on replacement parts over the past year—their excavators now run far longer without needing sleeve or piston changes. For sleeves with built-in mounting flanges, our five-axis CNC machining centers keep bolt hole position tolerance at 0.02mm, letting them fit perfectly with the hydraulic cylinder block during assembly. One construction equipment customer told us this tight tolerance eliminated the alignment headaches they used to have with other suppliers’ sleeves, speeding up their assembly line by nearly 15%.

We use cylindrical grinding machines with 0.001mm, preventing oil leakage at the sleeve-cylinder block interface. Throughout machining, we do real-time quality checks with laser diameter gauges and surface roughness testers, ensuring every feature meets specs before moving to the next stage. Checking during the process lowers the chance of turning out big runs of faulty components. This in-process inspection significantly reduces material waste and ensures consistent quality from batch to batch.

Quality control at our Difon excavator cylinder sleeves factory is thorough covering more than just size checks it includes performance and durability checks that meet construction machinery industry standards. A major excavator brand we supply said this strict friction test means their machines rarely have cylinder issues even in heavy daily use. Each finished sleeve is put into a test hydraulic cylinder and pressed with 1.5 times the maximum working pressure with no leakage or deformation allowed. We use a portable Brinell hardness tester to measure hardness at 5 points along the sleeve’s length and 3 points across its wall thickness ensuring even hardness distribution with variation no more than 15HB. Every sleeve that passes these tests gets a unique serial number linked to a digital quality record. It tracks the whole production process from raw material batch and casting settings to machining logs and test results. This traceability provides significant value to construction companies and excavator manufacturers and excavator manufacturers making it much easier to track maintenance and meet equipment warranty rules. One construction firm told us this traceability system saved them weeks of work when they needed to check a batch of sleeves for a large project it’s one of the main reasons they keep ordering from us instead of other suppliers.

Beyond manufacturing, we provide a partnership defined by integrated service and tailored customization. We recognize that different excavator models and working environments need tailored solutions a sleeve for a mining excavator needs better wear resistance to handle rough rock dust while one for urban construction might focus on lightweight design and low noise. Our engineering team works closely with yours to refine sleeve design suggesting material upgrades adjusting wall thickness or changing flange dimensions to meet your specific needs.

We also offer flexible production and delivery to support your business needs. Our facility can make 2,000 excavator cylinder sleeves per month and we can ramp up production for seasonal spikes or large aftermarket orders. A few months back a client needed an urgent batch of 500 sleeves for a big construction project we adjusted our schedule and delivered them 3 days ahead of their deadline—they’ve been a regular customer ever since.

For prototype development, we can make a small batch in 10–12 business days, letting you test fit and performance before mass production. We provide just-in-time delivery to align with your assembly line schedules, reducing your inventory costs and ensuring you have the right parts when you need them. Our customer service team is available around the clock to answer any questions from material details to technical help with installation and maintenance.

At Difon Machinery Co., Ltd., we believe a high-quality excavator cylinder sleeve is more than just a metal part it’s a key investment in your construction equipment’s reliability and profitability. As your trusted excavator cylinder sleeve factory our integrated manufacturing method material know-how precision machining skills and strict quality checks make sure each sleeve we make can handle the toughest construction environments. Whether you’re building new excavators or supplying aftermarket replacement parts we’re ready to turn your requirements into durable high-performance sleeves that keep your operations running smooth. Reach out to our team today to talk about your project ask for a sample quote or set up a facility visit. You’ll see our casting furnaces machining centers and quality control labs in action and soon get why so many construction equipment brands count on us for their critical hydraulic components. A recent visitor from a European excavator manufacturer said our production line’s attention to detail was far beyond what their previous suppliers offered. The level of detail in our production processes consistently earns the trust of leading global manufacturers.
